Thursday Morning Session II (10:15 - 11:45 am)
Transmission Line Reflections at a Resistive Load and at a Discontinuity
- Reflections at a resistive load, and at a discontinuity
- Ringing on transmission lines
- Matching schemes to reduce reflections

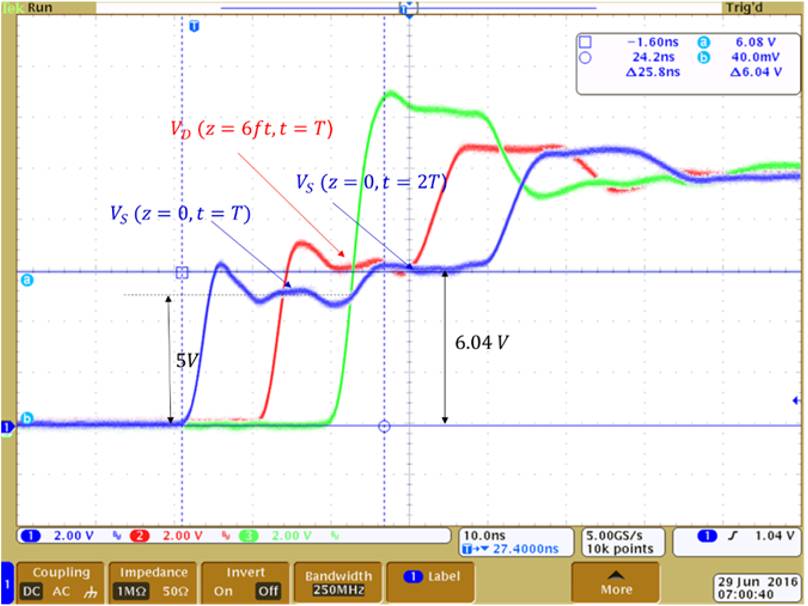

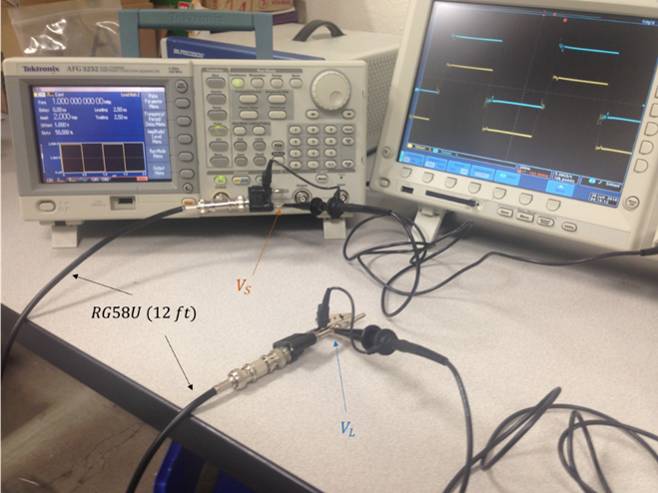

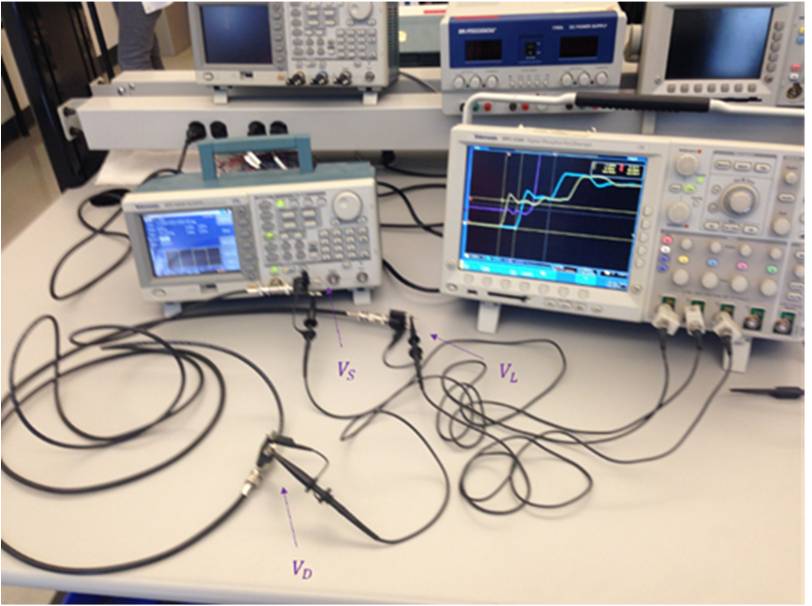

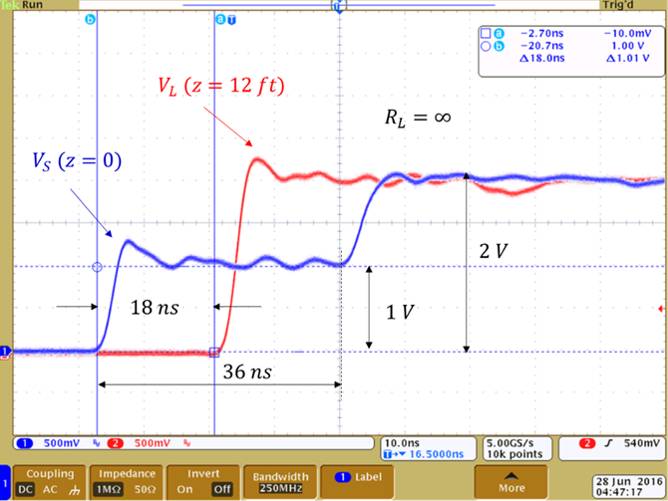

- Measurement - Reflections at a resistive load and at a discontinuity
Transmission Line Reflections at the Reactive Loads
- Reflection at a pure capacitive and RC load
- Reflections at a pure inductive and RL load

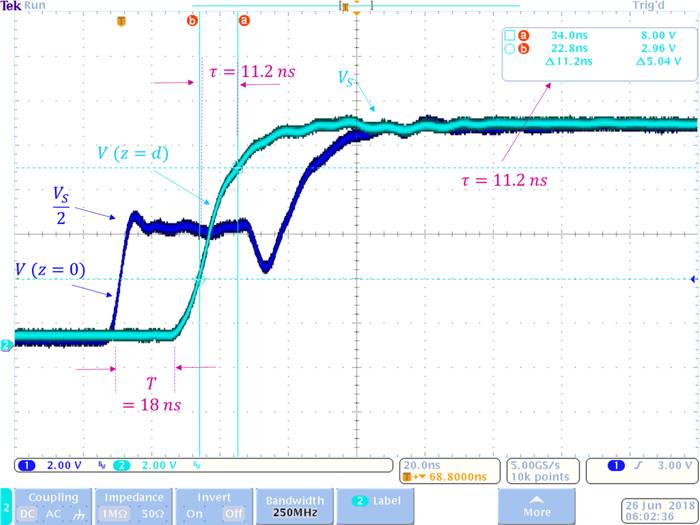

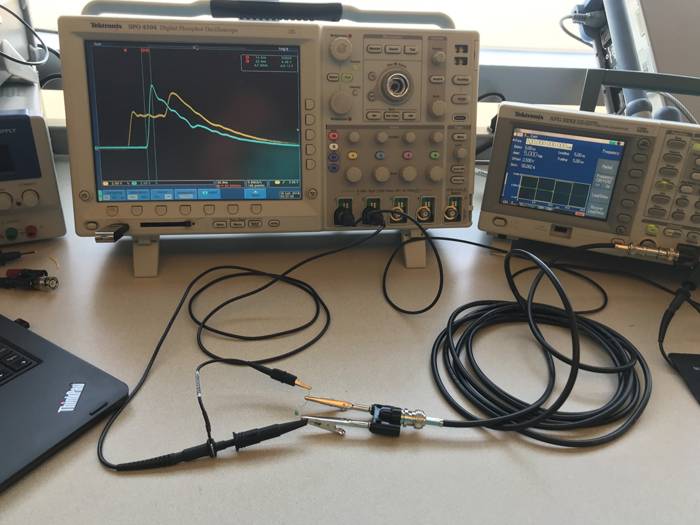

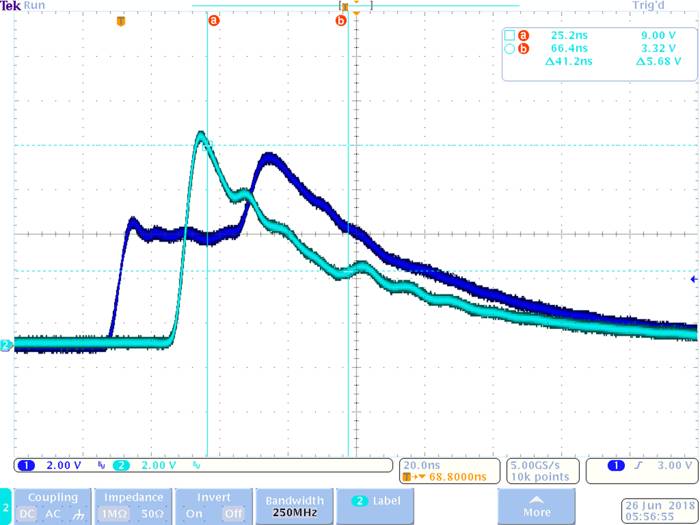

- Measurements - Reflections at the reactive loads
Eye Diagram and High Speed Signal Integrity

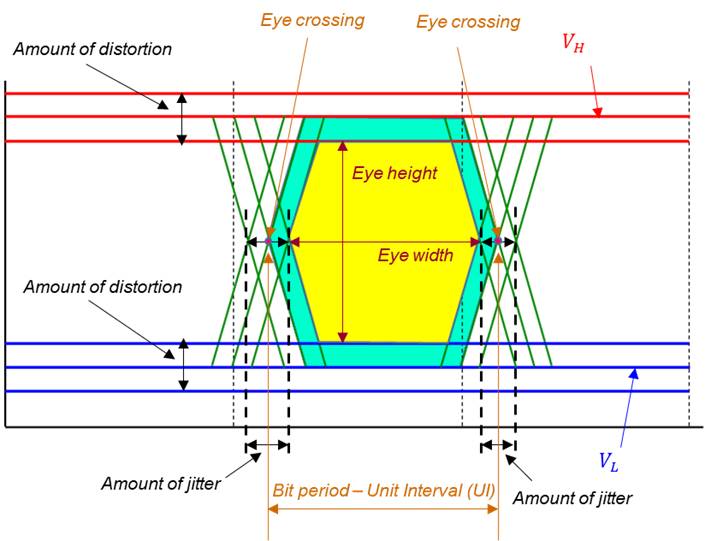

- Eye diagram parameters
- Impact of the driver, HDMI cable, and the receiver

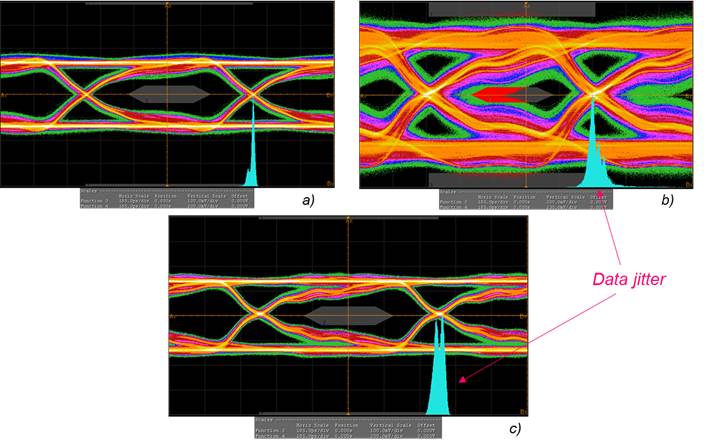

- Measurement results: High speed signal integrity and eye diagram
